Time Interval Meters

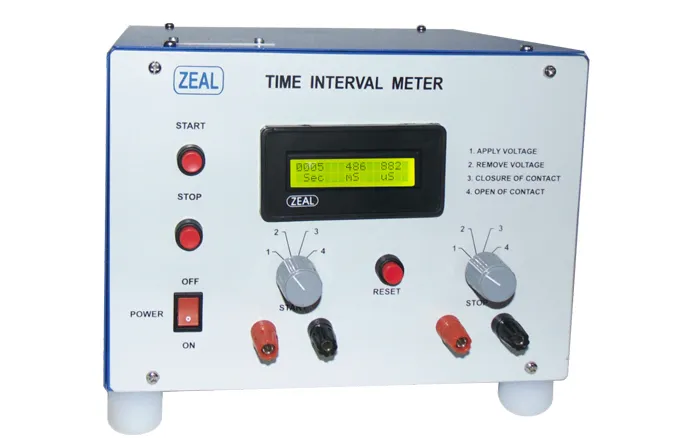

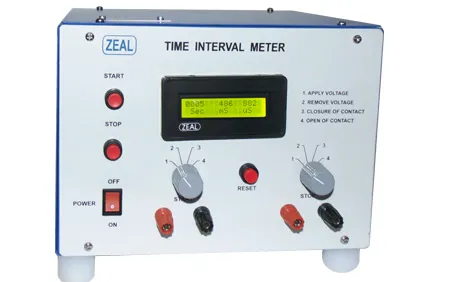

Time Interval Meter ( Micro Seconds )

Technical Specification

Make	Zeal
Model	ZMTIMµS
Input Power	230 VAC, 50 Hz / 110 VAC, 60 Hz
Test Conditions	For both Start & Stop Pulse by Decade Switches Test 1) Apply DC Voltage ( Up to 24 VDC Max ) Test 2) Remove Voltage Test 3) Closure of Contact Test 3) Open of Contact
Display Range	9999 Sec 999 Milli Sec 999 Micro Sec
Measurement Range	100µ S to 9999 Sec
Reset Facility	By Push Button
Display Type	16 X 2 Dot Matrix LCD Display
Resolution	1 Micro second
Accuracy	0.01% ± 10 µS
Protection	Start & Stop Pulse are isolated from each other
Weight	5 kg.

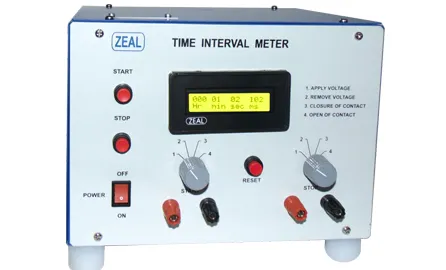

Time Interval Meter ( Milli Seconds )

We are Manufacturer, Supplier, Exporter of Time Interval Meters and we are also specialized in Calibration Services. Our setup is situated in Pune, Maharashtra, India.

Technical Specification

Make	Zeal
Model	ZMTIMmS
Input Power	230 VAC, 50 Hz / 110 VAC, 60 Hz
Test Conditions	For both Start & Stop Pulse by Decade Switches Test 1) Apply DC Voltage (Up to 24 VDC Max) Test 2) Remove Voltage Test 3) Closure of Contact Test 3) Open of Contact
Display Range	999 Hr 59 Min 59 Sec 999 Milli Sec
Reset Facility	By Push Button
Display Type	16 X 2 Dot Matrix LCD Display
Resolution	1 Milli second
Accuracy	For 999 mS 0.05% ±10 dgt. Above 999 milli Sec 0.01 %
Protection	Start & Stop Pulse are isolated from each other
Weight	5 kg.

Note : We Can Upgrade Products With Time To Give Improved Quality
