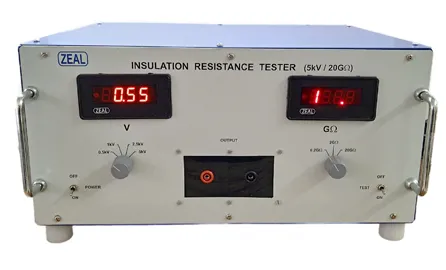

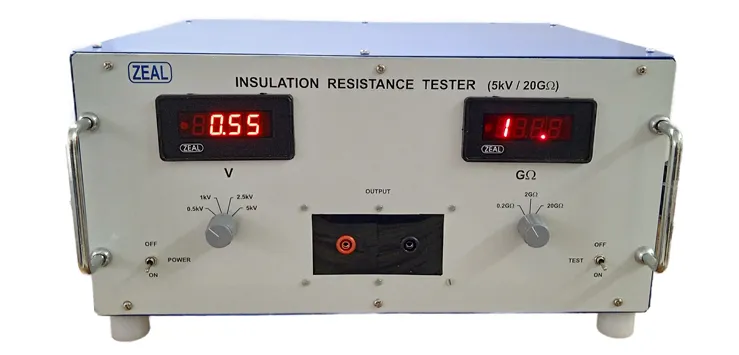

Insulation Resistance Tester ( 5kV )
We are Manufacturer, Supplier, Exporter of Insulation Resistance Testers ( 5kV ) and we are also specialized in Calibration Services. Our setup is situated in Pune, Maharashtra, India.
Technical Specification
| Make | ZEAL |
| Model | ZMIRT5kV |
| Power | 230V AC, ± 10 %, 50 Hz |
| Test Voltage | 0.50 kV to 5.00 kV DC ( Regulated ) |
| Test Voltage setting by coarse and fine potentiometers | |
| Resistance measurement Ranges | 0 - 2.00 G Ω, 20.00 G Ω |
| Range selection by toggle switch | |
| Metering | Digital 3½ digit 7 segment display for Voltage and Resistance meter |
| Accuracy | V : 1% of reading ±5 digit @ 100MΩ, GΩ : 1.5% of FS ±3 digit |
| Accessory | Banana to crocodile ( Fully insulated ) Hi, Lo & Guard |
| Protection | Against short circuit. |

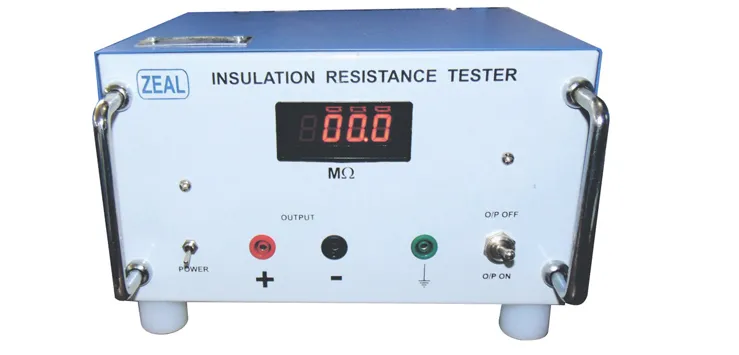

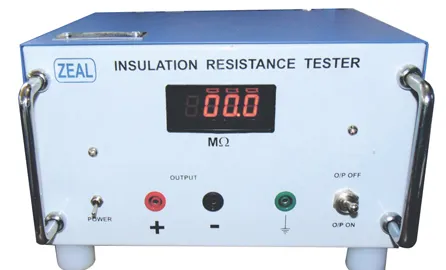

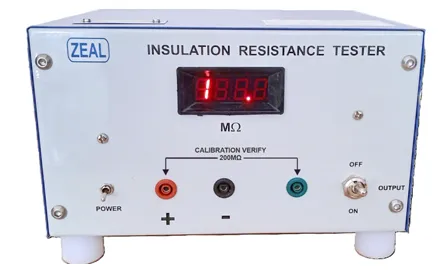

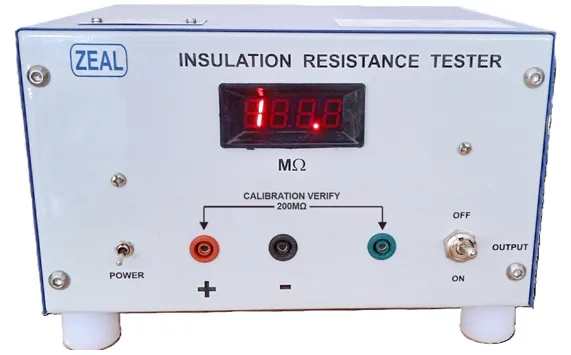

Insulation Resistance Tester
Technical Specification
Make |
ZEAL |
Model |
ZMIRT |
Power |
230V AC, ± 10 %, 50 Hz
|
Test Voltage
|
500V DC or 1000 V DC |
Resistance measurement Ranges |
200MΩ, 2000MΩ |
Range selection by toggle switch |
|
Metering |
Digital 3½ digit 7 segment display for Resistance |
Accuracy |
Test voltage : 1.5% @ 100MΩ, M Ω indication : 1.5% of FS ± 3 digit |
Accessory |
Banana to crocodile ( Fully insulated ) Hi, Lo & Guard |
Note : We Can Upgrade Products With Time To Give Improved Quality
