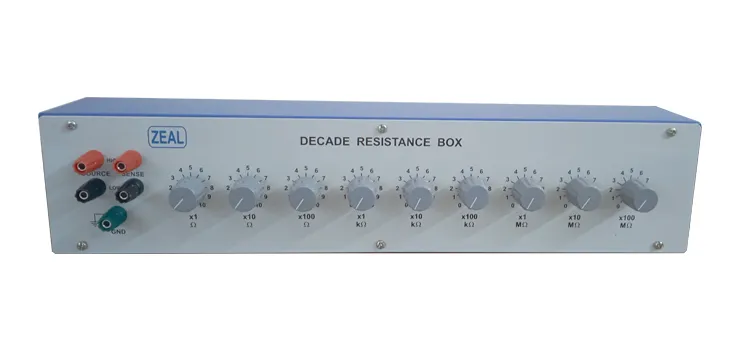

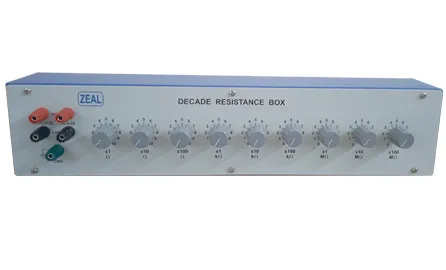

Decade Resistance Boxes
We are Manufacturer, Supplier, Exporter of Decade Boxes or Decade RLC Boxes. We are specialized in Calibration Services of such products. Our setup is situated in Pune, Maharashtra, India.
Technical Specification
| Make | ZEAL |
| Model | ZMDRB |
| Decades Range | 1 Ω, 10 Ω, 100 Ω, 1 kΩ, 10 kΩ, 100 kΩ, 1 MΩ, 10 MΩ & 100 MΩ |
| Total Resistance Range | 1 Ω to 1111.11111 MΩ |
| Zero Resistance | < 60 mΩ |
| Basic Stability | 100 PPM for 10 Ω to 10 MΩ |
| Accuracy | 0.2% for : 1 Ω 0.1% for : 10 Ω, 100 Ω, 1 kΩ, 10 kΩ, 100 kΩ, 1MΩ & 10 MΩ 0.5% for : 100 MΩ |
| Weight | 2 kg. |

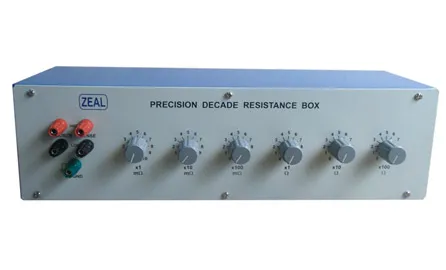

Precision Decade Resistance Boxes
Technical Specification
| Make | ZEAL |
| Model | ZMPDRB |
| Decades Range | 1 mΩ, 10 mΩ, 100mΩ, 1 Ω, 10 Ω & 100 Ω |
| Total Resistance Range | 1 mΩ to 1.11111 kΩ |
| Zero Resistance | < 10 mΩ |
| Basic Stability | 100 PPM |
| Accuracy | 5.0% for : 1 mΩ. 2.5% for : 10 mΩ. 1.5% for : 100 mΩ. 0.2% for : 1 Ω. 0.1% for : 10 Ω & 100 Ω. |
| Weight | 2 kg. |

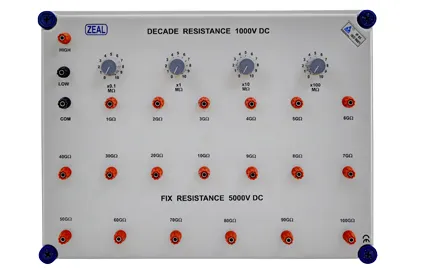

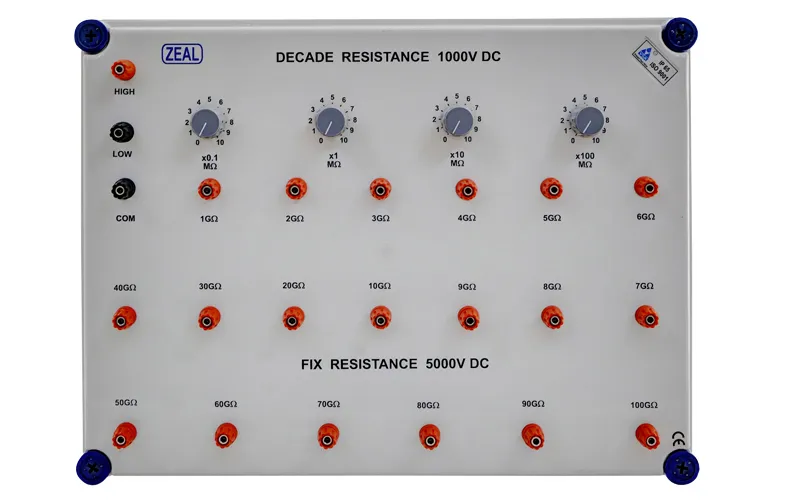

Decade Resistance Box with Fix Resistors
Technical Specification
| Make | ZEAL |
| Model | ZMDRB-0.1M-100G |
| Specifications | Decades of 0.1 MΩ, 1 MΩ, 10 MΩ, 100 MΩ Fixed Resistors : 1 GΩ, 2 GΩ, 3 GΩ 4 GΩ, 5 GΩ, 6 GΩ, 7 GΩ, 8 GΩ, 9 GΩ, 10GΩ, 20 GΩ, 30 GΩ, 40 GΩ, 50 GΩ, 60 GΩ, 70 GΩ, 80 GΩ, 90 GΩ, 100 GΩ |
| Accuracy | ± 5% for all decades and fixed resistors 10 Fix resistors 1 GΩ x 10 in series mounted on acrylic 10 Fix resistors 10GΩ x10 in series mounted on acrylic |
| Test Voltage | 1000V : for 0.1 M Ω,1 M Ω,10 M Ω, 100 MΩ 5000V : for all fixed resistors Dials of 0.1 MΩ, 1 MΩ, 10 MΩ, and 100 MΩ can be used at 5000V when connected in series with any fixed resistor |
| Power Rating | 1 Watt @ 500C |

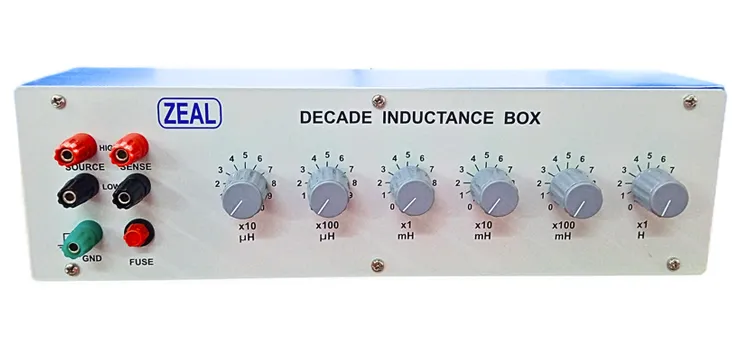

Decade Inductance Boxes
Technical Specification
| Make | ZEAL |
| Model | ZMDIB |
| Specifications | Decades of 10μH, 100μH, 1mH, 10mH, 100mH, 1H |
| Total Inductance range | 10 μH to 1H |
| Accuracy | 1% at 1 kHz |
| Residual Inductance | < 1 μH |

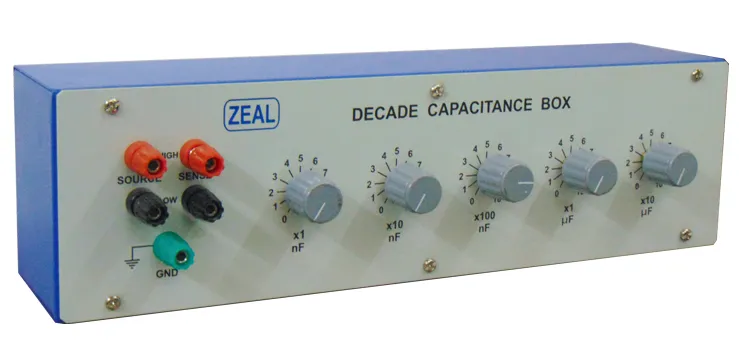

Decade Capacitance Boxes
Technical Specification
| Make | ZEAL |
| Model | ZMDCB |
| Specifications | Decades of 1nF, 10nF, 100nF, 1μF, 10μF |
| Total capacitance Range | 111.111 μF |
| Accuracy | 1% at 1 kHz |
| Residual Capacitance | < 15 pF |
Note : We Can Upgrade Products With Time To Give Improved Quality
