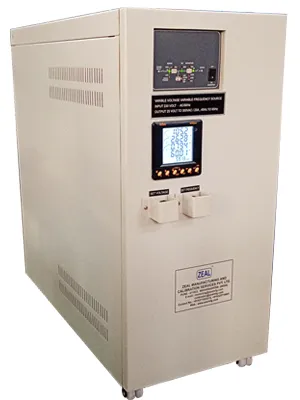

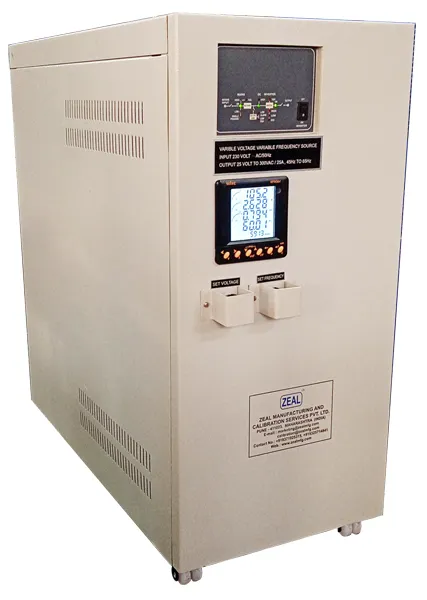

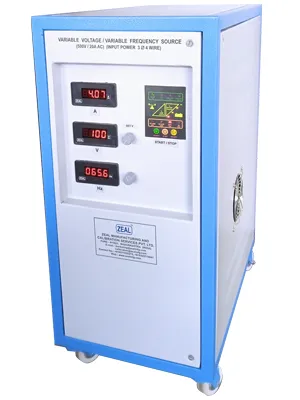

Variable voltage/current variable frequency source is used to simulate mains conditions of different countries. Also it is used for verifying frequency response of power devices, frequency relays and components. Variable current variable frequency source are used for checking current transformers.
Technical Specification
Make |
ZEAL |
| Input Power | 230 Volt ± 10% AC, 50 Hz |
Output Voltage Range |
5 to 200 V (Sine wave) |
Max Current |
5 Amps (with overload protection) |
Compliance |
1000 VA, at FS of each range |
Output Frequency Range |
50 to 60 Hz. |
Meters |
3½ - digit AC voltmeter, 4 - digit frequency meter 3½ - digit AC Current meter with 2 ranges (range1 : 2A, range2 : 5A) |
Accuracy of V |
1.5% ± 3digit, Resolution: 0.1 V |
Accuracy of Hz |
± 2digit, Resolution: 0.1 Hz |
Accuracy of A: |
1 % ±3, digit, |
Protection: |
Against Overload & Short circuit with trip indication by LED |
Controls: |
Range selection by toggle switch on panel Power ON/OFF by toggle switch on panel |
Setting of Voltage & Frequency and Current: |
By Multi turn potentiometers |
Note : We Can Upgrade Products With Time To Give Improved Quality
