Power Energy Meter Calibrators / Watt Meter Calibrators

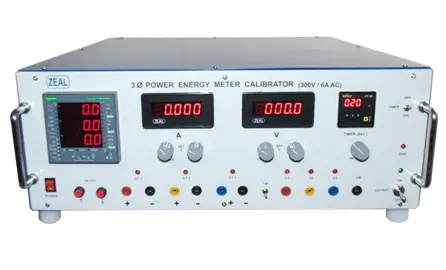

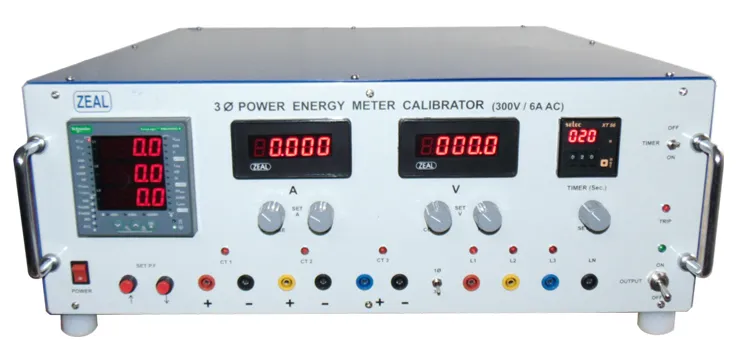

Three Phase Power Energy Meter Calibrators

We are Manufacturer, Supplier, Exporter of Three Phase Power / Energy Meter Calibrator. This product also known as Watt Meter Calibrator, Energy Meter Calibrator. We are also specialized in Calibration Services & our setup is situated in Pune, Maharashtra, India.

Technical Specification

Make	ZEAL
Model	ZM3øPEMC
Input Power	230Volt AC
Output Voltage Ranges	0 to 300 V (L-N) or 0 to 520V Phase to phase
Output Current Ranges	0 to 6A per Phase
Mode	3 Phase 4 Wires.
Output Ports	Vr, Vy, Vb, - N & Ir ( Hi, Lo ), Iy (Hi, LO), Ib ( Hi, Lo )
PF Range	0.1 Lag to Unity to 0.1 Lead
Compliance	20VA, at FS on V ranges
Compliance	30VA, at FS on A channels
Frequency Parameters	45 to 60 Hz,Resolution: 0.01 Hz
Accuracy	± 0.01 Hz.
Basic Accuracy for V, A W, WHr	0.15% ± 3 dgt for voltage & current. 0.05% ± 1 dgt for PF, 0.3% FS for wattmeter, 0.02% for time duration, Whr : 0.15%.
Setting	Voltage, Current & Frequency by Potentiometer. Power factor by Push Button keys, Timer by thumb wheel switches. switch for selection of 3ø or 1ø
Metering	Digital Voltmeter, Digital AC Ammeter, Universal Meter to indicate PF, W, VA, VAR of each phase also Average of all phases, WHr programmable current display to accommodate to CT ratio.
Sinusoidal Output	THD 1.5%
Protection	Overload & Short circuit.
Dimensions	(W600XD600XH270)mm
Weight	40kg without packing.

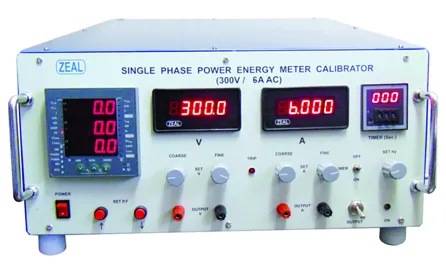

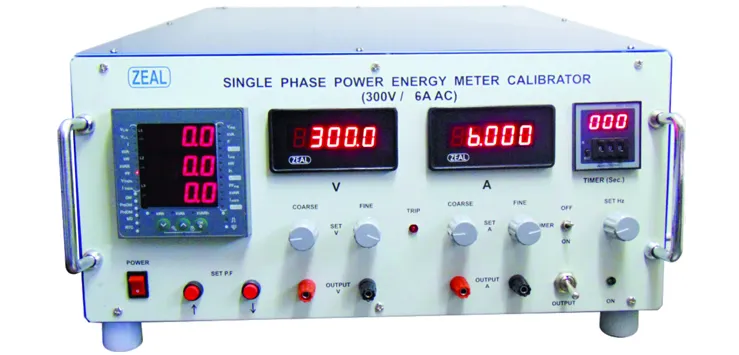

Single Phase Power Energy Meter Calibrators / Watt Meter Calibrators

We are Manufacturer, Supplier, Exporter of Single Phase Power Energy Meter Calibrators and we are also specialized in Calibration Services. Our setup is situated in Pune, Maharashtra, India.

Technical Specification

Make	ZEAL
Model	ZMSPEMC
Input	230 VAC, 50 Hz / 110 VAC, 60 Hz
Output Voltage Ranges	0 to 300 V ( L - N )
Output Current Ranges	0 to 6 A
Mode	1 Phase
Output Ports	V ( Hi, Lo ), I ( Hi, Lo )
PF Range	0.1 Lag to Unity to 0.1 Lead
Compliance	20 VA, at FS on V ranges, 30 VA, at FS on A channel
Frequency	45 to 60 Hz
Timer	Programmable timer counter to keep output ON for fix duration. Duration programmable in minute.
Setting	Voltage, Current, Frequency setting by multiturn potentiometers, Power factor by Push Buttons Keys, Timer by thumbwheel switch.
Metering	Digital AC Voltmeter, Digital AC Ammeter, Universal meter to indicate PF, W, VA, VAr of each phase. Also average of all phases, WHr Programmable current display to accommodate any CT ratio.
Accuracy Class	0.15% ± 3 dgt for voltage & current. 0.05% ± 1 dgt for PF, 0.3% FS for wattmeter, 0.02% for time duration, Whr : 0.15%.
Sinusoidal Outputs	THD < 1.5%
Protections	Overload and Short circuit
Applications	Useful to test and calibrate single phase wattmeter and industrial / residential energy meters.

Note : Current Range Beyond 6A Can Also Be Provided On Demand

Note : We Can Upgrade Products With Time To Give Improved Quality
