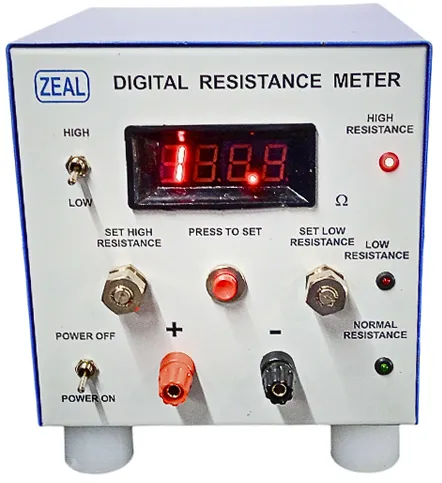

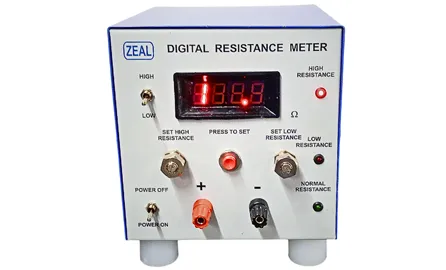

Digital Resistance Meter
We are Manufacturer, Supplier, Exporter of Digital Resistance Meter and we are also specialized in Calibration Services. Our setup is situated in Pune, Maharashtra, India.
Technical Specification
Make |
ZEAL |
Model |
ZMDRM |
Power |
230V AC, 50Hz, ± 10% |
Range |
0 to 100Ω 0 to 1k Ω 0 to 10 k Ω 0 to 100 k Ω Open circuit voltage : 5V typical |
Setting & Indication |
LED indicator for Low, high and normal (within specification) resistance value. Setting parameter: knob shall be provided to set Low and High value of resistance |
Display |
Digital 4 digit 7 segment display |
Accuracy |
1.5% ± 3 digit |
Buzzer |
It will give sound when resistance value Low or High (out of specification). With settable limits for lower & upper acceptance of resistance by potentiometer. |
Digital Resistance Meter
Digital Resistance meter are very useful for measuring dc winding resistance of motors, transformers etc. Meter available in wide range of resistance. They are highly reliable in industrial noisy atmosphere.
Technical Specification
Make |
ZEAL |
Model |
ZMDRM200m to ZMDRM2M |
Power |
230V AC, 50Hz ± 10% |
Measurements Range |
200mΩ, 2Ω, 20Ω, 200Ω, 2000Ω, 20kΩ, 200kΩ, 2MΩ |
Test current |
1µA to 1A as per measurement range |
Open circuit voltage |
5V or as per customer requirement |
Meter |
3½ digits |
Typical Accuracy |
1.5% ±3 digits |
Digital 4 wire Resistance Meter
Technical Specification
Make |
ZEAL |
Model |
ZMD4WRM |
Power |
230V AC, 50Hz ±10% |
Measurements Range |
20mΩ, 200mΩ, 2000mΩ |
Test Current |
10mA to 1 A as per measurement range |
Open circuit voltage |
5V or as per customer requirement |
Meter |
3½ digits |
Typical Accuracy |
1.5% ±3 digits |
Note : We Can Upgrade Products With Time To Give Improved Quality
