Leakage Current Testers (Leak Current Testing Machines)

Leakage Current Testers

We are Manufacturer, Supplier, Exporter of Leakage Current Testers. This product also known as Leak Current Testing Machines. We are also specialized in Calibration Services & our setup is situated in Pune, Maharashtra, India.

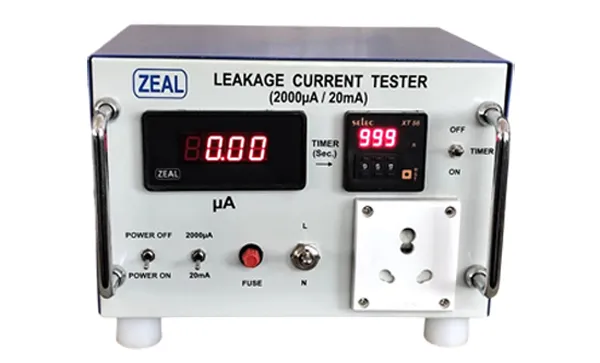

A Leakage Current Tester is a precision testing instrument designed to measure and analyze leakage current in electrical and electronic equipment for safety, quality control, and compliance testing. Our tester delivers accurate, reliable, and fast measurement results, making it ideal for manufacturers, testing laboratories, service centers, and industrial maintenance applications.

Features

High accuracy leakage current measurement.
Fast and stable testing performance.
Digital display with real-time readings.
Compact and rugged industrial design.
User-friendly operation.

Applications

Electrical appliance testing.
Medical equipment safety testing.
Industrial equipment inspection.
Power supply testing.
Electronic product quality control.
Transformer and motor testing.
R & D laboratories
Production line testing.
Preventive maintenance.

Technical Specification

Model	ZMLCT
Input Power Supply	230V AC ±10% @ 50 Hz.
Leakage Current Range	Range 1 : 0 to 2000µA.
	Range 2 : 0 to 20mA.
Display	3½ Digit 7 segment red LED display for Current.
Accuracy	±1%
Setting	Measurement Range Selection by Toggle Switch.
	Line & Neutral Selection by Toggle Switch.
Programmable Timer	999 Sec. With Timer ON/OFF Switch.
Output Through	3 Pin Socket
Dimension	245mm (W) X 200mm (D) X 160mm(H) Approx.
Weight	3 kg. approx.
