We are Manufacturer, Supplier, Exporter of Non - Contact Type Tachometer Calibrator and we are also specialized in Calibration Services. Our setup is situated in Pune, Maharashtra, India.

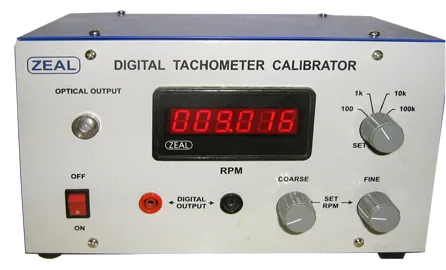

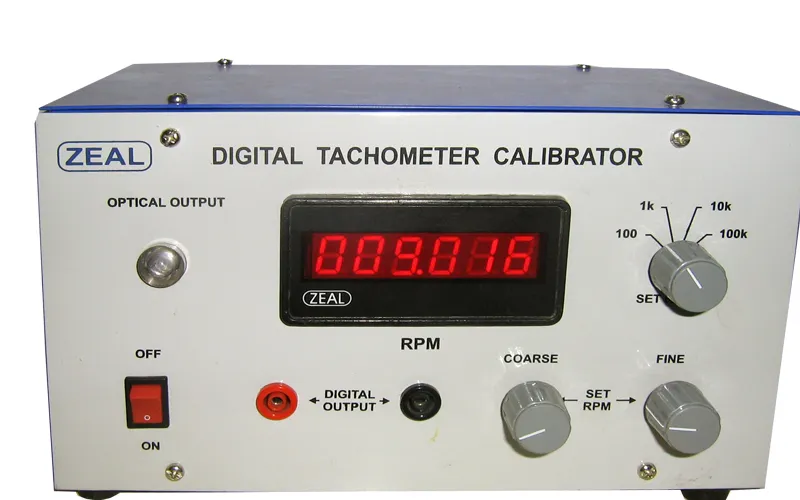

Digital Tachometer Calibrator is very easy to use calibration tool for Calibration of Non Contact Type Tachometer. It has outputs optical and TTL pulse. Source has 4 ranges. User has to simply focus the emitted light beam of Non contact type Tachometer on LED.
Multi - turn potentiometers Coarse & Fine are provided for setting RPM. Rotary switch to select different Ranges.
Technical Specification
| Make | ZEAL |
| Model | ZMDTC |
| Input Power | 230V AC ± 10%, 50Hz |
| Ranges | 100, 1000, 10000, 100000 RPM |
| Total Settable Range | 1 RPM to 100000 RPM |
| No. of digits | 6 digits for each range |
| Accuracy | 0.05% ± 2 digits |
| Output | Optical Pulse by Blinking of LED |
| Digital Output | 5 V TTL Pulse |
Note : We Can Upgrade Products With Time To Give Improved Quality
