mV / mA / RTD Calibrator

We are Manufacturer, Supplier, Exporter of mV / mA / RTD Calibrator and we are also specialized in Calibration Services. Our setup is situated in Pune, Maharashtra, India.

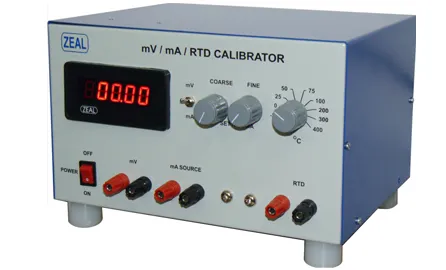

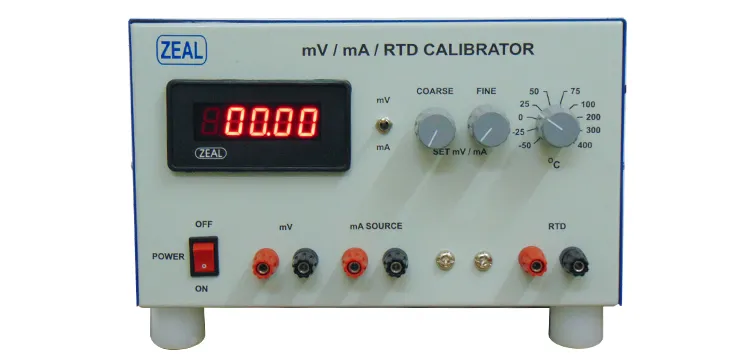

'ZEAL' make mV/mA/RTD Calibrator Model ZMPCM is specially designed for onsite calibration and trouble shooting of process control instruments such as-indicators, controllers, isolators, two wire transmitters etc. Instrument operates on 230 VAC and is immune to noise and pickups generated in plant. It incorporates mA Source & mV Source along with potential free RTD Simulator.


Features
  • 230 V AC, ±10 % @ 50 Hz Operated.
  • Overload and short circuit protection.
  • 4½ digit 7 segment LED display.
  • mV & mA setting by potentiometer.
  • Separate output ports for mV, mA & RTD.
  • Temperature selection by rotary switch.

Technical Specification

Model ZMPCM
Input Power Supply 230V AC, ±10 % @ 50 Hz.
DC Current Source Range 0 to 20mA DC
DC Voltage Source Range 0 to 200mV
Accuracy 0.1% ±3 digits for current & voltage and 0.1% for RTD
RTD Range Fix Positions of rotary switch to set Temperature from
-50oC, -25oC, 0oC, 25oC, 50oC, 75oC, 100oC, 200oC, 300oC, 400oC
Protection Over Load & Short Circuit
Dimensions 250mm(W) X 200mm(D) X 150mm(H)
Weight 4-5kg. (Approx.)
