High Resistance Jigs - ZM5KHRJ

High Resistance Jigs - ZM5KHRJ

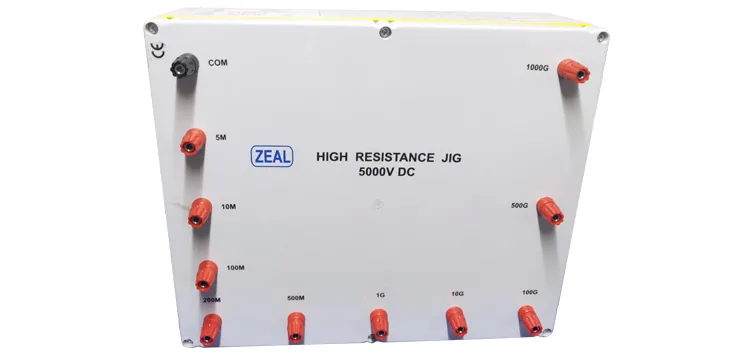

High Resistance Jig

We are Manufacturer, Supplier, Exporter of High Resistance Jigs, 4 Wire Low Resistance Standards, Low Resistance Standards, Manufacturer, Supplier, Exporter, Pune, Maharashtra, India.

High Resistance Jig are designed to calibrate Insulation Resistance Tester, Mega Ohm Meter, Giga/Tera Ohm meter, High Resistance Meter etc.


Features
  • Fixed Resistance.
  • High accuracy.
  • Excellent stability.
  • Outputs through 4mm safety BTI terminals.

Technical Specification

Model ZM5KHRJ
Fixed Resistor 5 MΩ, 10 MΩ, 100 MΩ, 200 MΩ, 500 MΩ, 1 GΩ, 10 GΩ, 100 GΩ, 500 GΩ,1000 GΩ.
Maximum Test Voltage 5000V DC
Accuracy 2% for 5 MΩ, 10 MΩ, 100 MΩ, 200 MΩ, 500 MΩ, 1 GΩ, 10 GΩ.
5% for 100 GΩ, 500 GΩ,1000 GΩ.
Dimension 400mm(W) X 140mm(D) X 300mm (H)
Weight 0.6kg. (Approx.)

Note : We Can Upgrade Products With Time To Give Improved Quality
