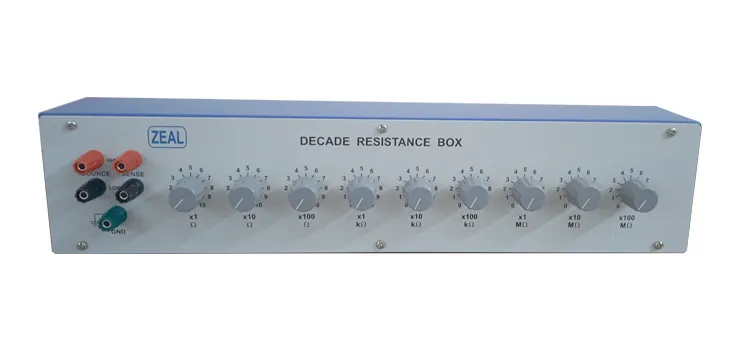

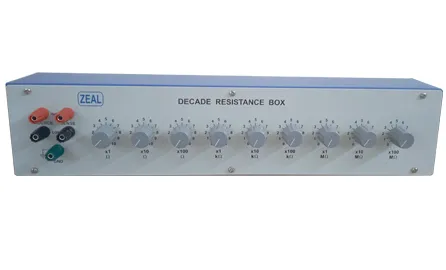

Decade Resistance Boxes

We are Manufacturer, Supplier, Exporter of Decade Boxes or Decade RLC Boxes. We are specialized in Calibration Services of such products. Our setup is situated in Pune, Maharashtra, India.

The Decade Resistance boxes allow quick and easy setting of a wide range of resistance. The main function of these decade boxes is to create resistance with a specific value by using a combination of rotary decade switches. Resistance boxes are used in laboratory testing and calibration.

Features

Resistance range from 1Ω to 1000 MΩ.
High accuracy.
Excellent stability.
Outputs through 4mm safety BTI terminals.
Rotary switch selector.

Technical Specification

Model	ZMDRB
Resistance Range	1Ω to 1000 MΩ.
Residual Resistance	< 60 mΩ for 1 year, after 1 year add 5mΩ per year
Stability	100 PPM (10 Ω to 10 MΩ)
Operating Temperature	10^o C to 40^o C
Storage Temperature	5^o C to 70^o C
Drift due to ageing	50 PPM
Accuracy	Range	Accuracy: @ 20^o to 28^oC, RH <70%
	X 1 Ω	± 0.2%
	X 10 Ω to X 10 MΩ	± 0.1%
	X 100 MΩ	± 0.5%
Dimension	470mm(W) X 100mm(D) X 80mm(H)
Weight	2kg. (Approx.)
