These products are known by other names like High Pot Testers, Voltage Withstand Capability Testers or simply High Voltage Testers also. Designed with better features and accuracy, our offered range of Breakdown Tester is meant for testing the electrical insulation ability and electric strength. ZEAL make testers are ideal for performing high voltage breakdown tests in production, in the laboratory, and for type approvals also. The tester of this category is robustly designed. Standard accessories of the tester include HV test probe, fully insulated crocodile clip & mains cord.

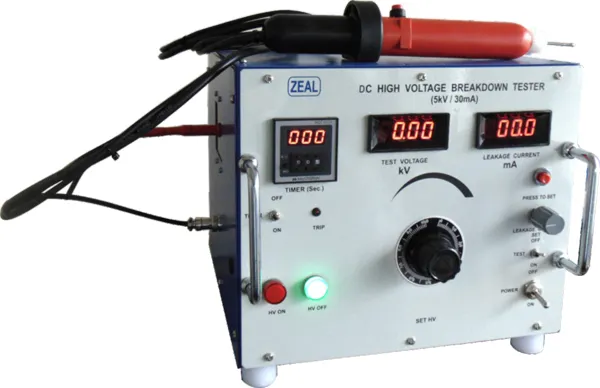

DC High Voltage Breakdown Tester
We are Manufacturer, Supplier, Exporter of DC High Voltage Breakdown Testers, High Voltage Breakdown Tester, Voltage Breakdown Tester and we are also specialized in Calibration Services. Our setup is situated in Pune, Maharashtra, India.
Features
- Voltage variation by knob of variac.
- Audio / Visual alarm when HV ON & OFF.
- 3½ digit meter for Test Voltage (kV) indication.
- 3½ digit meter for Leakage Current (mA) indication.
- Timer to set Test duration.
- Timer ON / OFF by Toggle switch.
- Trip Current setting by Press to set switch & Potentiometer.
- Input Fuse protection.
- Test ON / OFF by Toggle switch.
Technical Specification
| Make | ZEAL |
| Power | 230V AC, 50Hz |
| Voltage Range | 0 to 5kV DC |
Leakage Current Range |
0 to 20mA |
| Trip Current setting | by press to set switch & potentiometer, using digital mA meter Test Voltage Range Settable by knob of Variac. |
| Programmable Timer | 0 to 999 second with timer ON/OFF switch. |
| Metering | 3½ digit Digital kV and mA meter |
| Resolution | 0.01kV, 0.1mA respectively |
| Accuracy: Kv | 2% of reading ±3 dgt, mA: 1.5% of reading ±2 dgt, |
| Timer | ± 0.5 second |
| Features | • Audio/Visual alarm when HV ON & OFF. • Test ON/OFF switch to start or interrupt test. • HV is removed whenever leakage current exceeds than the set value. • LED indication for Trip / Leakage. • Timer ON/OFF switch. |
| Indications | Trip, HV ON, HV OFF |
DC High Voltage Breakdown Tester
| Rating | Model Series |
| 5kV/10mA | ZMHV5D-10 |
| 5kV/20mA | ZMHV5D-20 |
| 5kV/30mA | ZMHV5D-30 |
| 5kV/50mA | ZMHV5D-50 |
| 5kV/100mA | ZMHV5D-100 |
| 5kV/500mA | ZMHV5D-500 |
| 10kV/20mA | ZMHV10D-20 |
| 10kV/30mA | ZMHV10D-30 |
| 10kV/50mA | ZMHV10D-50 |
| 10kV/100mA | ZMHV10D-100 |
| Rating | Model Series |
| 20kV/20mA | ZMHV20D-20 |
| 20kV/30mA | ZMHV20D-30 |
| 20kV/50mA | ZMHV20D-50 |
| 20kV/100mA | ZMHV20D-100 |
| 20kV/500mA | ZMHV20D-500 |
| 30kV/20mA | ZMHV30D-20 |
| 30kV/30mA | ZMHV30D-30 |
| 30kV/50mA | ZMHV30D-50 |
| 30kV/100mA | ZMHV30D-100 |
| 30kV/500mA | ZMHV30D-500 |
