DC Regulated Power Supply ( Power Supplies )

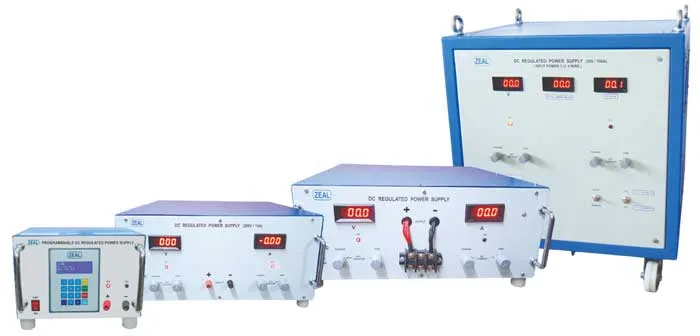

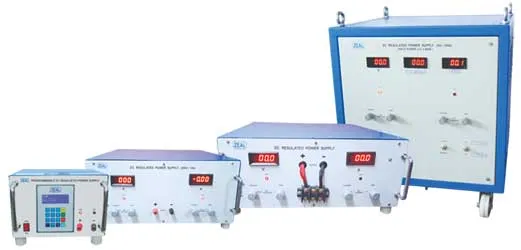

DC Regulated Power Supply
DC Regulated Power Supply

We are Manufacturer, Supplier, Exporter of DC Regulated Power Supply. This product also known as DC Power Supply. We are also specialized in Calibration Services. Our setup is situated in Pune, Maharashtra, India.

ZEAL make DC Regulated Power Supply are widely used in various industries, laboratories, research & educational institutes. While ZEAL makes Low, Medium and High-voltage DC regulated Power supplies, this is a case of a high current power supply.

It is cost effective, highly reliable in performance for long life. AC mains voltage is rectified, filtered and pre-regulated by thyristor and post regulated by power transistors. Our designs are linear and hence our power supplies don't cause electromagnetic noise. Apart from an excellent load and line regulation, they are provided with overload and short circuit protections. Power supply can be used in both CV and CC modes.


Features
  • Protection against overload & short circuit by CC mode.
  • Separate meters for voltage and current.
  • Set Voltage & Current by coarse & fine potenometers.
  • LEDs to indicate the modes of operation CC & CV.
General Technical Specification

Model ZMPS
Input Power Supply 230V AC, ±10 % @ 50Hz Single Phase or 415V AC, ±10 % @ 50 Three Phase
Load Regulation Better than ±0.1%
Line Regulation Better than ±0.1%
Ripple & Noise Better than ±0.1% rms
Accuracy ±0.5% , ±2 digit
Display 3½ digit 7 segment red LED display for Voltage
3½ digit 7 segment red LED display for Current
Controls Voltage and Current setting by coarse & fine potentiometer
Power ON/OFF Switch
Protection Protection against overload & short circuit by CC mode

Note : DC Regulated Power Supplies can be designed to meet the standard operating voltage and frequency requirements for your country.

Typical Ranges Are Available
Input Power 230V ±10% 50Hz Single Phase Input Power : 415V ±10% 50 Hz 3 Phase 4 Wire
Model Rating Model Rating
ZMPS15-50-15V / 0-5AZMPS30-1500-30V / 150A
ZMPS30-20-30V / 0-2AZMPS30-2000-30V / 200A
ZMPS30-50-30V / 0-5AZMPS30-4000-30V / 400A
ZMPS30-100-30V / 0-10AZMPS50-80A0-50V / 80A
ZMPS30-150-30V / 0-15AZMPS50-100A0-50V / 100A
ZMPS30-200-30V / 0-20AZMPS50-200A0-50V / 200A
ZMPS30-300-30V / 0-30AZMPS60-60A0-60V / 60A
ZMPS30-500-30V / 0-50AZMPS60-100A0-60V / 100A
ZMPS30-1000-30V / 0-100AZMPS60-200A0-60V / 200A
ZMPS60-50-60V / 0-5AZMPS60-400A0-60V / 400A
ZMPS60-100-60V / 0-10AZMPS80-500-80V / 50A
ZMPS60-200-60V / 0-20AZMPS80-600-80V / 60A
ZMPS60-500-60V / 0-50AZMPS80-800-80V / 80A
ZMPS80-100-80V / 0-10AZMPS100-50A0-100V / 50A
ZMPS80-200-80V / 0-20AZMPS100-100A0-100V / 100A
ZMPS80-300-80V / 0-30AZMPS100-200A0-100V / 200A
ZMPS100-50-100V / 0-5AZMPS150-30A0-150V / 30A
ZMPS100-100-100V / 0-10AZMPS150-50A0-150V / 50A
ZMPS100-200-100V / 0-20AZMPS200-15A0-200V / 15A
ZMPS300-50-300V / 0-5AZMPS200-30A0-200V / 30A
ZMPS300-100-300V / 0-10AZMPS300-10A0-300V / 10A
ZMPS500-20-500V / 0-2AZMPS300-20A0-300V / 20A
ZMPS500-50-500V / 0-5AZMPS500-5A0-500V / 5A
ZMPS1000-2A0-1000V / 0-2AZMPS1000-5A0-1000V / 5A

Note : High Voltage & High Current Range Can Be Customized As Per Requirements.

Note : We Can Upgrade Products With Time To Give Improved Quality
