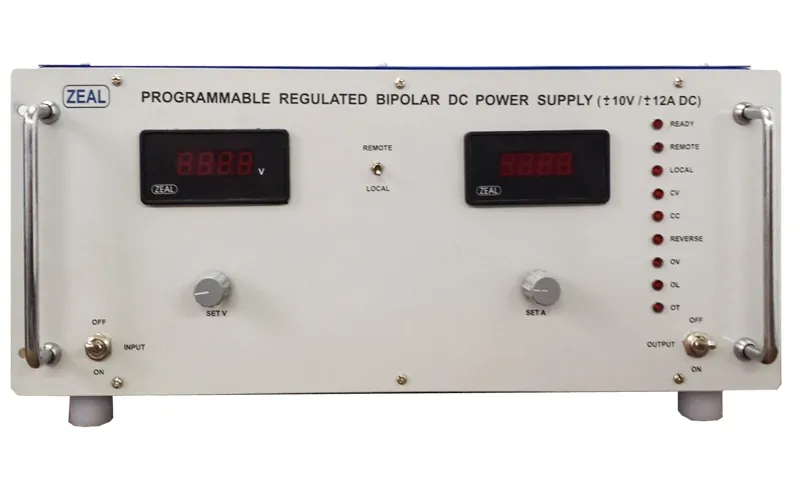

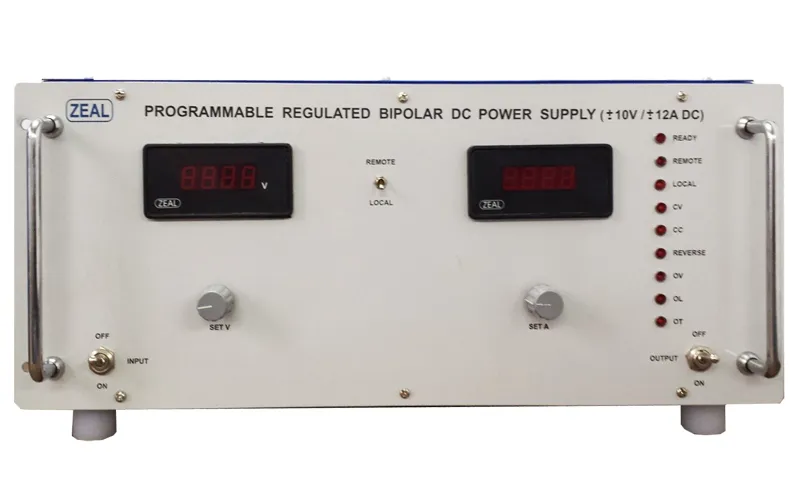

Bipolar DC Power Supply
Make :
ZEAL
Model :
ZMBPS
Output Voltage
0 to ±10V(or Vmax. rated)
Output Current
0 to ±12A(or Imax. rated)
Input Voltage
Single AC mains 220V AC±10%,47 to 53 Hz
Unite casting
Plug in compatible to 19’  rack mounting system
Type of cooling
Forced air cooled(Cooling fan)
Output voltage load regulation
≤±0.1% for specified line variations and no load to full load variations
Output voltage program accuracy
≤±0.1% of set value
Output current regulation
≤±0.1% for specified line variations and no load to full load variations
Output voltage ripple(RMS)
≤±0.05% of set value
Output current ripple
≤±0.05% of set value
Output voltage noise
≤±0.05% of set value
Output current stability
≤±0.05% per hour after nominal warm up time of less than 3 hours
Output voltage
Continuously adjustable in between -10V to +10V
or by panel mounted 10-turn potentiometers.
Remote sensing
With 4-wire system,0.5 volt drop or more per wire
Display voltage and current
4.5 digits, better than 0.1% accurate,
