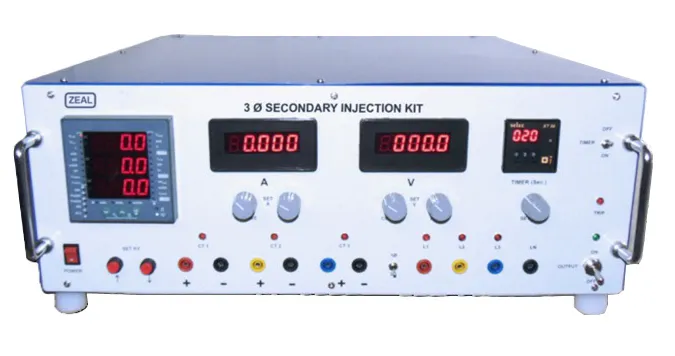

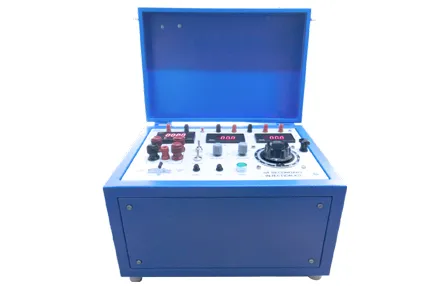

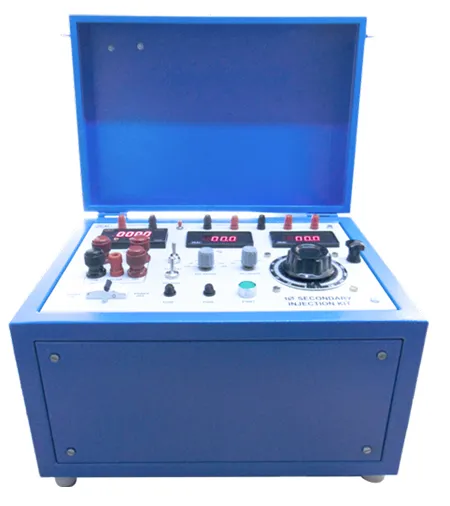

Secondary Injection Kit

Technical Specification :
Make :
ZEAL
Model : ZM3ΦSIK
Input :
230V 50 Hz or 110Volt AC, 60 Hz
Output Voltage Ranges :
0 to 300 V (L-N) or 0 to 520V Phase to phase
Output current ranges :
0 to 6A per Phase.
Mode :
3 Phase 4 Wires.
Output ports :
Vr, Vy, Vb, -N & Ir (Hi, Lo), Iy (Hi, LO), Ib (Hi, Lo)
PF Range :
0.1 Lag to Unity to 0.1 Lead.
Compliance :
Compliance :
20VA, at FS on V ranges.
20VA, at FS on A channels
Frequency :
45 to 60Hz.
Setting :
Voltage, Current & Frequency by Potentiometer. Power factor by Push Button keys, Timer by thumb wheel switches.
Metering :
Digital Voltmeter, Digital AC Ammeter, Universal Meter to indicate PF, W, VA, VAR of each phase also Average of all phases, WHr programmable current display to accommodate to CT ratio.
Accuracy :
0.15% FS ± 10 dgt for voltage & current. 0.05%± 1 dgt for PF, 0.3%FS for wattmeter, 0.02% for time duration, Whr: 0.35%.
Sinusoidal Output :
THD 1.5%
Protection :
Overload & Short circuit.
Weight :
35kg without packing.

Application : This unit is useful for testing of protection relays and power-line transducers. This kit can also be used to calibrate load managers and single phase/three phase panel meters.
